Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: EVERGOOD
  • Model Number: RF Explorer
  • Display Size: 2.9 Inches & Under
  • Interface:: USB
  • Average Noise Level:: -89dBm & Under

Packaging & Delivery

Packaging Details Factory package
Delivery Time 1~3days



RF Explorer Model USB Digital Spectrum Logic Analyzer Oscilloscope 112KHz-100MHz WSUB1G Handheld Digital Spectrum Analyzer

Introduction

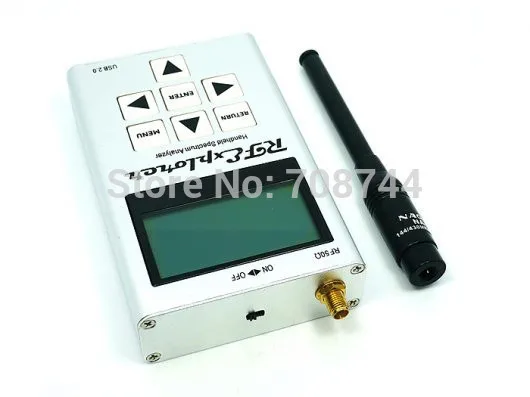

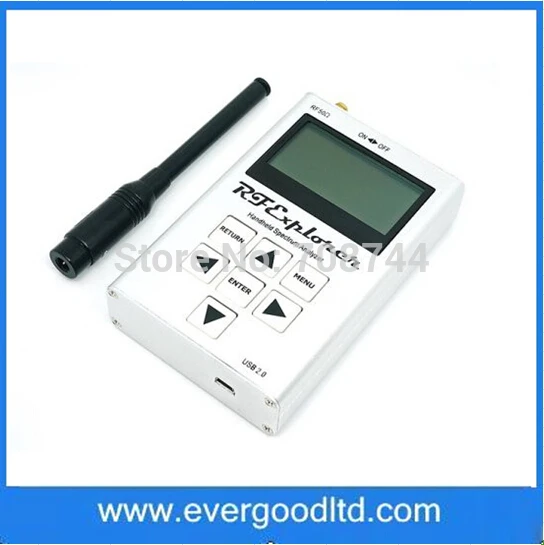

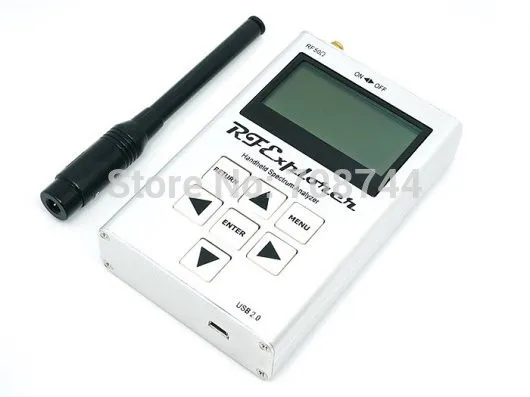

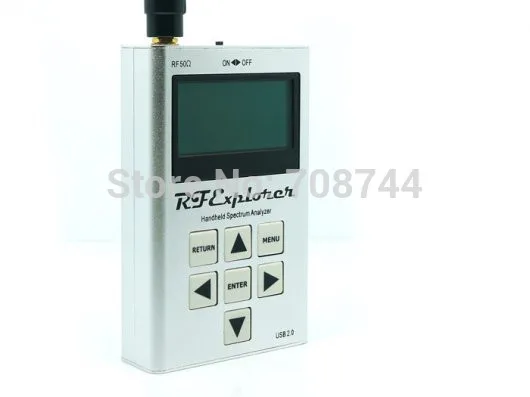

RF Explorer is a handheld digital spectrum analyzer, a very affordable tool for work in all ISM popular frequency bands. It is based on a highly integrated frequency synthesizer which offers high performance, compact size, low consumption and low cost.
It has been designed to be used equally well outdoor and indoor, and can be connected to a PC for extra functionality using standard mini-USB 2.0 connector.

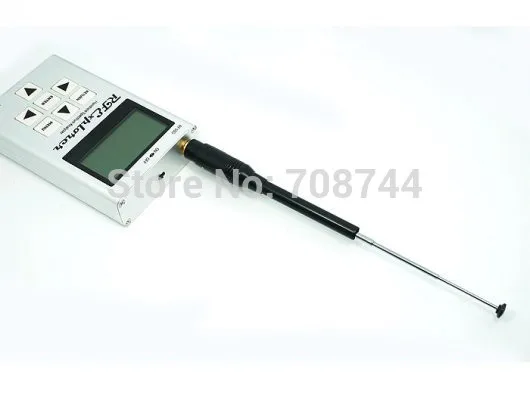

This model comes with a nice Nagoya NA-773 wideband telescopic antenna.

Feature
Pocket size and light weight
Solid aluminum metal case
Spectrum Analyzer mode with Peak Max and Hold, Normal, Overwrite and Averaging modes
Lifetime free firmware upgrades available, open to community requested features
High capacity Lipo for 16hs+ of continuous run, rechargeable by USB
Windows PC client Open Source
Can be extended with internal Expansion Modules for additional band and functionality
Wide band coverage to all popular sub-1Ghz ISM bands, including 315MHz, 433MHz, 868MHzand 915MHz, also including UHF TV, 70cm and 33cm HAM radio, GSM, etc. Any frequency from 240MHzto 960MHzis covered.
Important: Note this unit does not include RF Generator functionality, only Spectrum Analyzer functionality is available

Specification
Frequency band: 240 - 960 MHz
Frequency span: 112KHz - 100MHz
Graphics LCD 128x64 pixels, great visibility outdoors
PC Windows client supports Windows XP/Vista/Win7 both 32 and 64bits
Backlight for great indoor visibility
Standard SMA 50 ohms connector, wideband Nagoya NA-773 telescopic antenna included
Amplitude resolution: 0.5dBm
Dynamic range: -115dBm to 0dBm
Absolute Max input power: +5dBm
Average noise level (typical): -110dBm
Frequency stability and accuracy (typical): +-10ppm
Amplitude stability and accuracy (typical): +-3dBm
Frequency resolution: 1Khz
Resolution bandwidth (RBW): automatic 2.6Khz to 600Khz
Weight: 185g
Size: 113x70x25 mm
RF Explorer handling care suggested link: rf-explorer.com/care

Pictures for reference only.




Payment&Shipping



1.Payment: Escrow, WU, T/T



2.Free Shipping Notes

Express shipping usually takes 7-15 working days dependent on the country delivered to. We are not responsible for delays or other issues that are the responsibility of the shipping service. But we will help you to track the package until you get.

In order to ensure you receive your order tax free upon import, we will declare it as a 'GIFT' with a lower value. This lower price does not reflect the total price you paid or the market value of the product and may not apply to countries with different tariff rules. Any import charges or fees are the buyer's responsibility. If the package cant be delivered because of the buyers reason (including refusing to sign), buyer should afford all the extra cost!



After Service Policy



          1: 100% of all delivered products will be tested before shipping and we guarantee that all our products you get will be working all right.

  • 2: No refund, exchange only.

  • 3:In case of missing/defective parts, please notify us no later than 5 days after you receive the item and we will arrange re-shipment of the item.

  • 4:Buyer has to email us for the exchange notice prior to returning item, buyer will bear the freight & handling fee.

  • 5:We offer after-sell service within 1 year of purchase. We would bear the one way freight (from China to your place).
